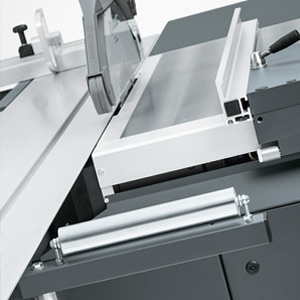

PRO3PQS Panel Saw


Technical data
  • Motorised rise/fall and tilt adjustment (0-46°) for the main saw blade with automatic cutting height correction when saw blade tilted
  • Eye-Level ProDrive control unit, swivelling & clipboard
  • Sliding table length 3800mm
  • CNC Rip fence, cutting width 1300mm
  • PQS parallelogram cross slide with DIGIT L for 1/10mm accuracy when setting the length dimension

*Specifications subject to change without notice.

*Images are for illustration purposes only.

Category: Tags: ,


F45 ProDrive

  • Motorised rise/fall and tilt adjustment (up to 46° to either side)* for the main saw blade with automatic height correction and digital display
  • Motorised rip fence adjustment*
  • Motorised crosscut fence adjustment with one motorised axis*
  • Automatic position correction for rip fence and crosscut fence when saw blade tilted
  • Digital speed display or infinitely variable speed control (VARIO)*
  • Motorised scorer unit, two or three axes*
  • Continuous precision axis control using +/- keys*
  • Control of the vacuum clamping system in the sliding table*
  • Easy axis calibration
  • Machine diagnostics
  • Operating hours counter
  • USB Interface
  • “Back” function to recall last set of dimensions entered
  • Memory for 99 cutting programmes

*Optional accessory
